Check out our latest REBUILD! Back in 2021 we took a 2020 Marin San Quentin frame and modififed it to accept an electric motor. This bike handles difficult terrain with ease and its a great long travel bike. However, with advancements in tech and our expanded capabilities, we decided to revisit this build and give this bike a big upgrade! Scroll below to see the modifications we made!

HIGHLIGHTED NEW FEATURES:

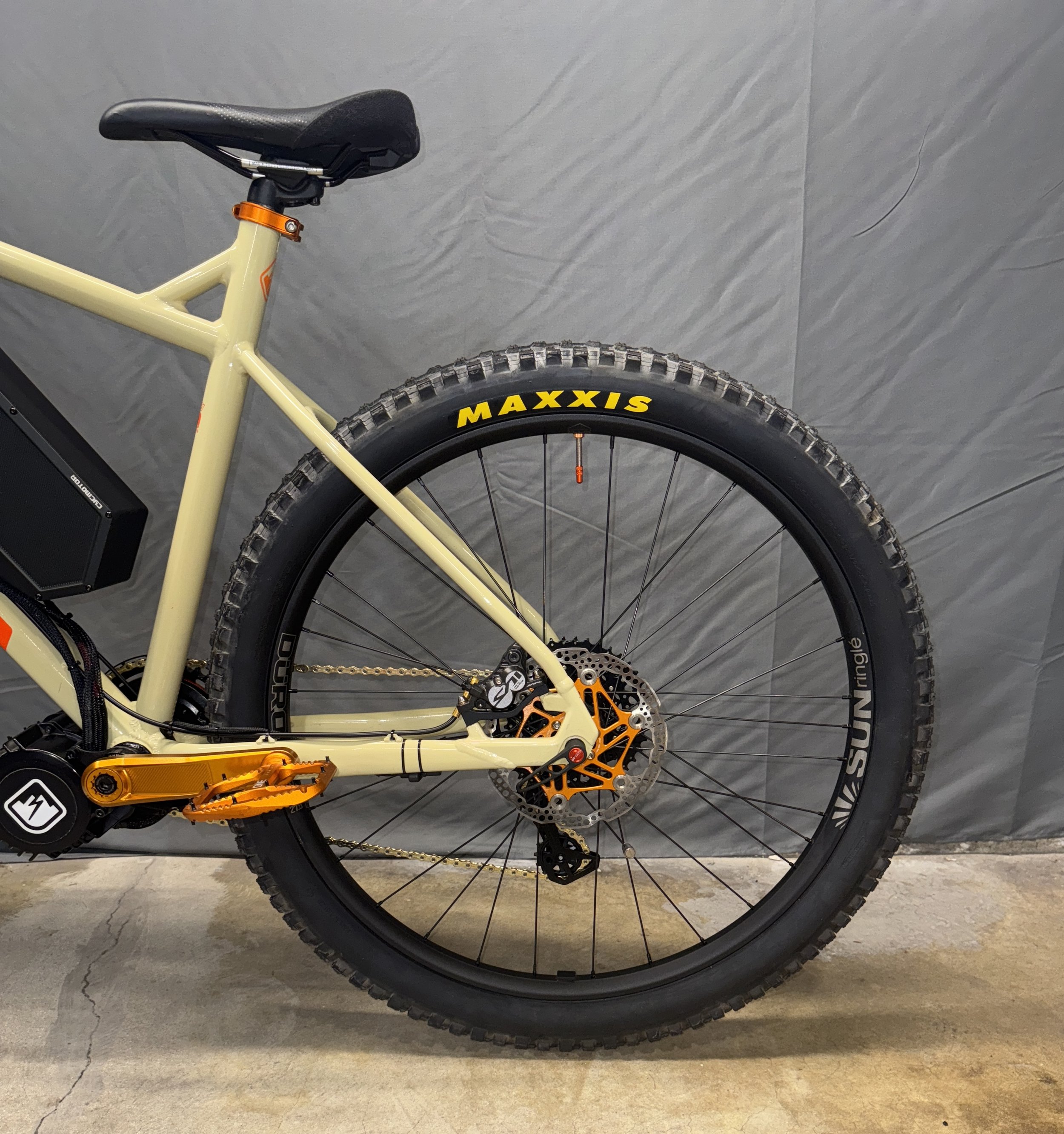

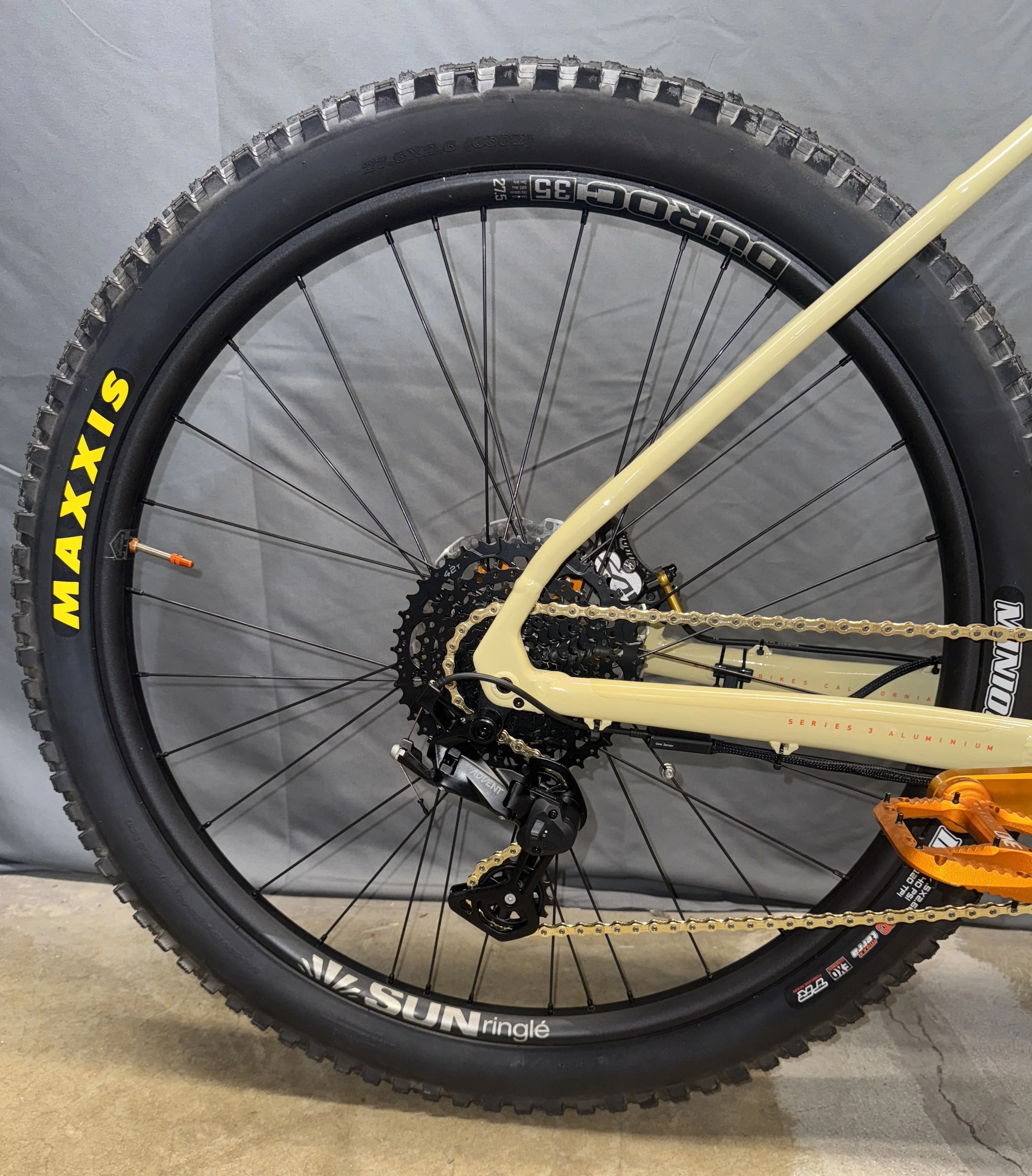

Removed the Kindernay geared hub and replaced it with a traditional derailleur cassette set up.
Features: Microshift Advent Medium Cage Derailleur with a clutch and paired it with a e-bike specific 11-42 cassette with a Microshift trail pro single click shifter and topped it off with a KMC e-bike specific chain in gold.
Rebuilt Bafang BBSHD motor. Includes: upgraded internals with some stronger parts and a powder coated the drive cover in Illusion Orange.
Shortened the main wiring harness to fit the bike perfectly. Extremely shortened the power leads to the battery and shortened the wiring on both the shift sensor and shift sensor lead from the motor all to fit perfectly on the bike.

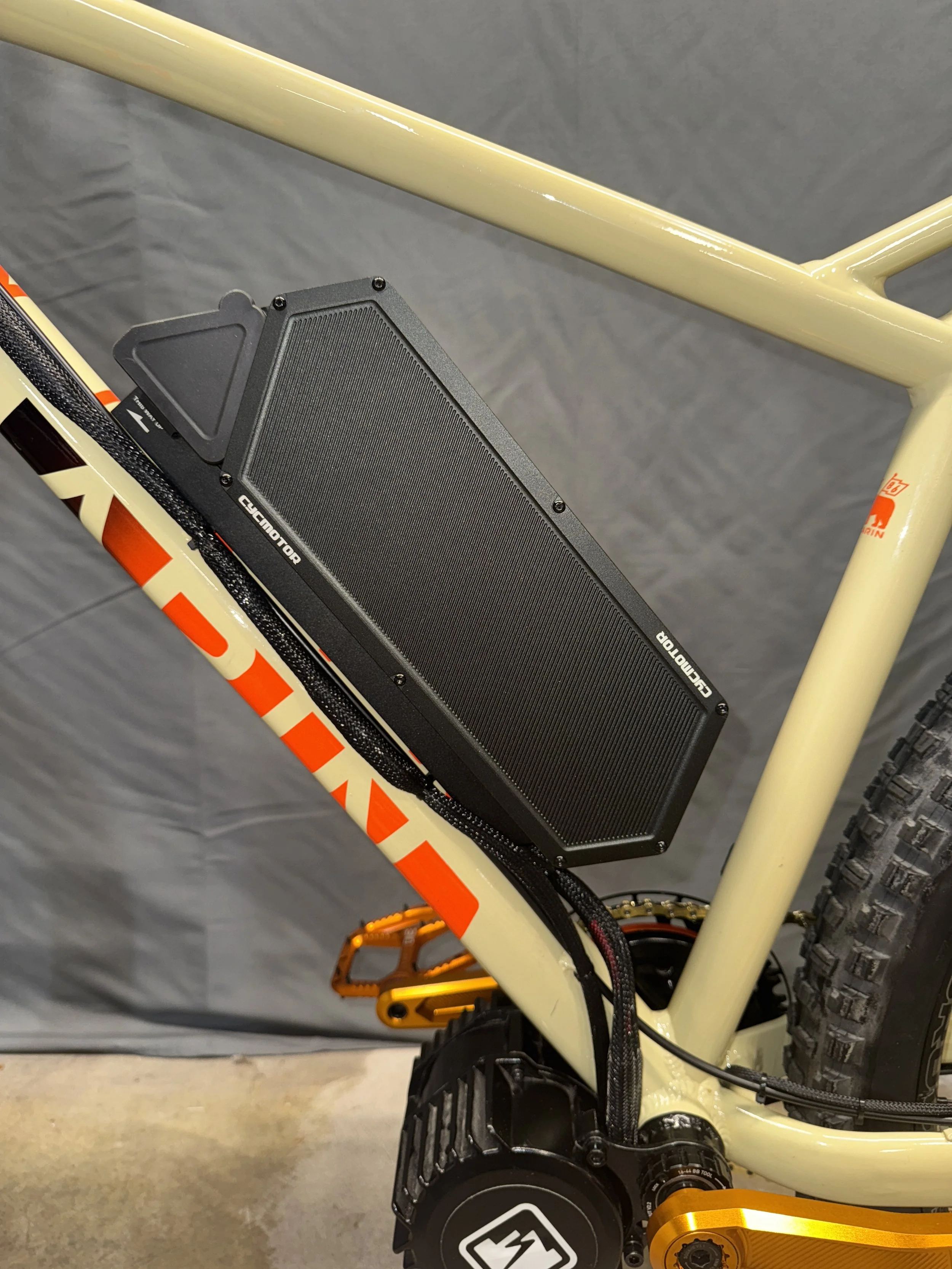

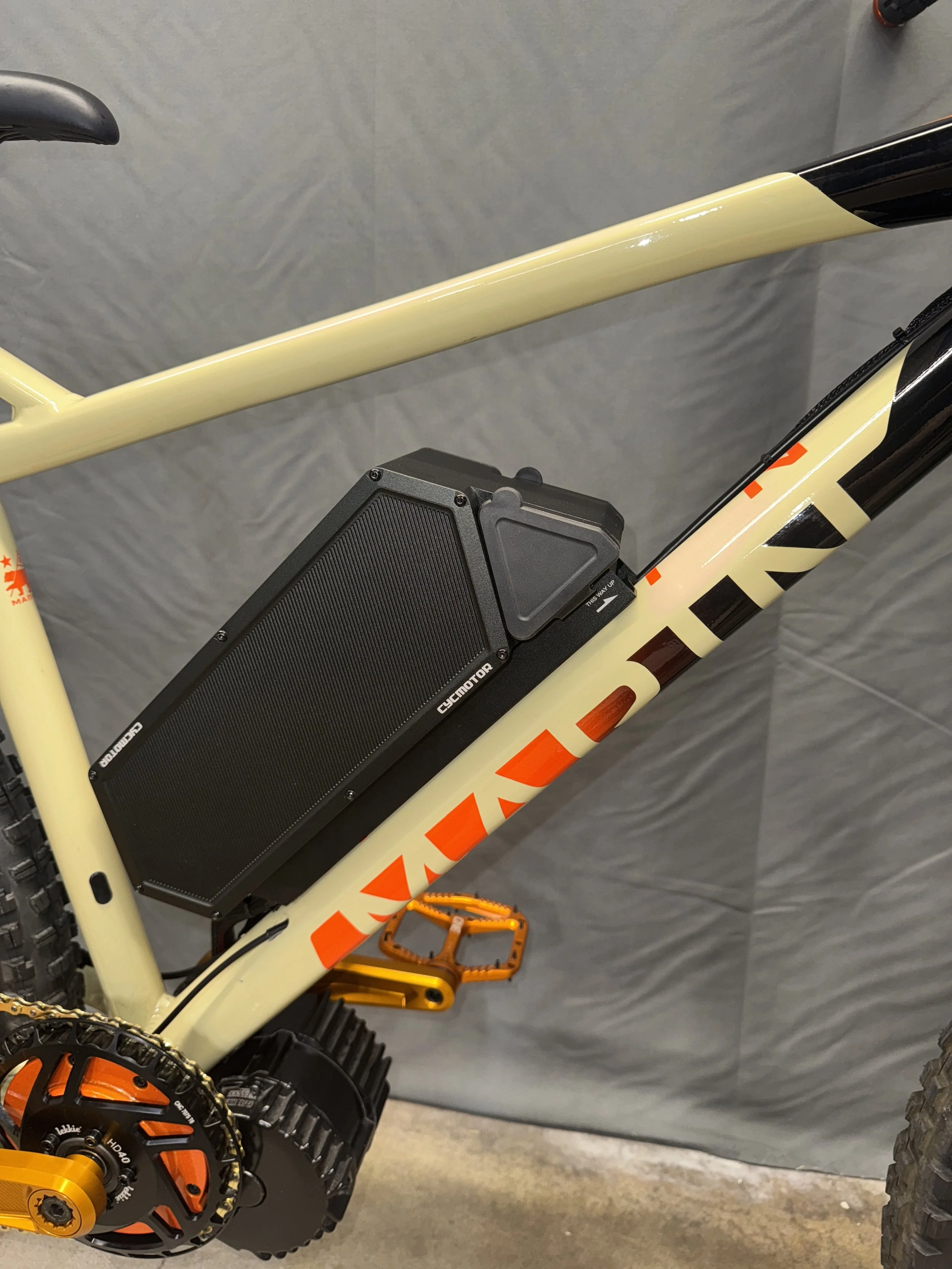

Changed the battery to a CYC Hard Cased 52v 15ah battery capable of high discharge rates. Modified the mounting bracket to make a very strong and secure mount. The new battery locks on with a key and can be easily removed for storage and travel. Also the new battery can charge your phone or other devices with a built in usb-c port.

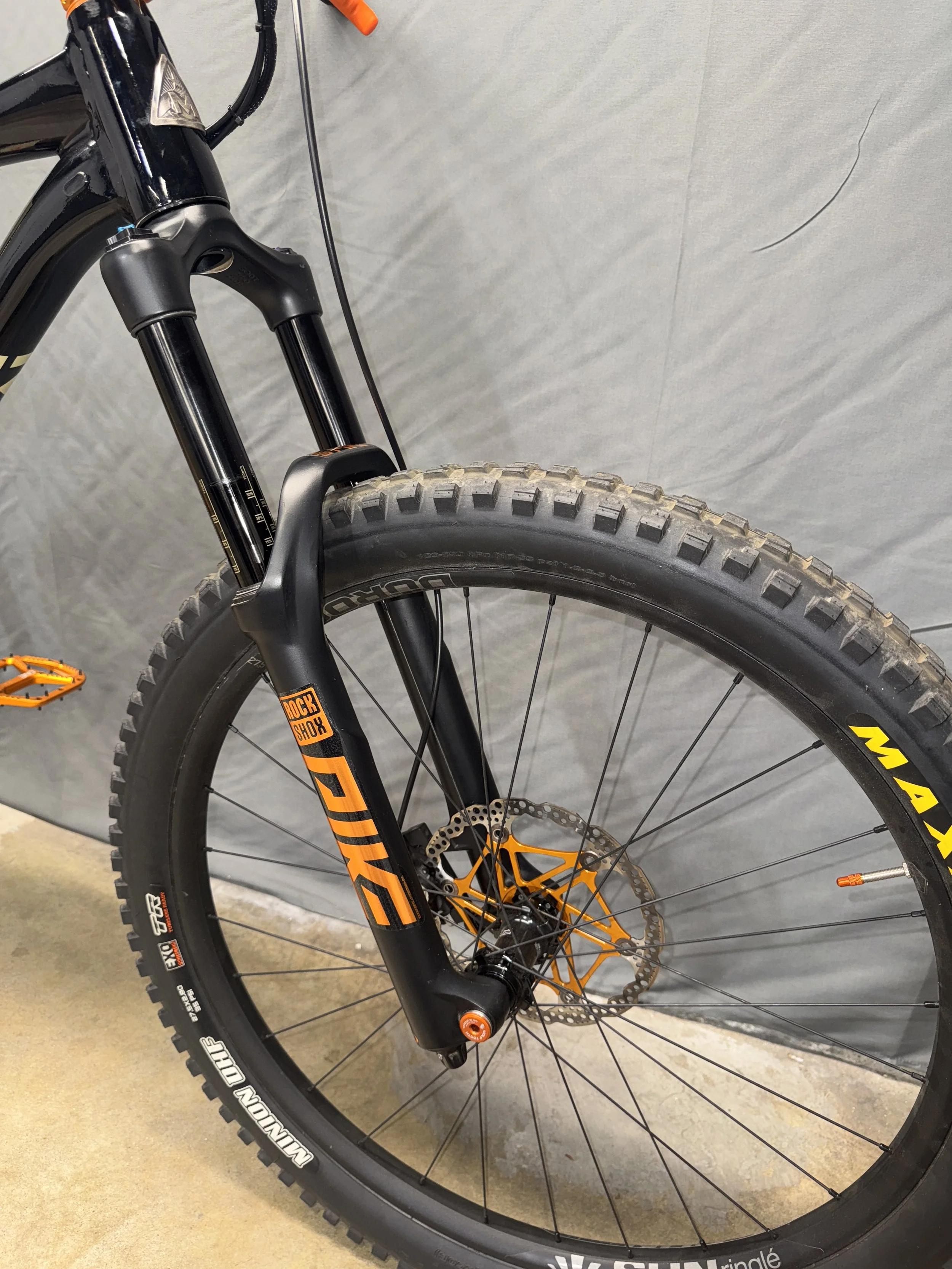

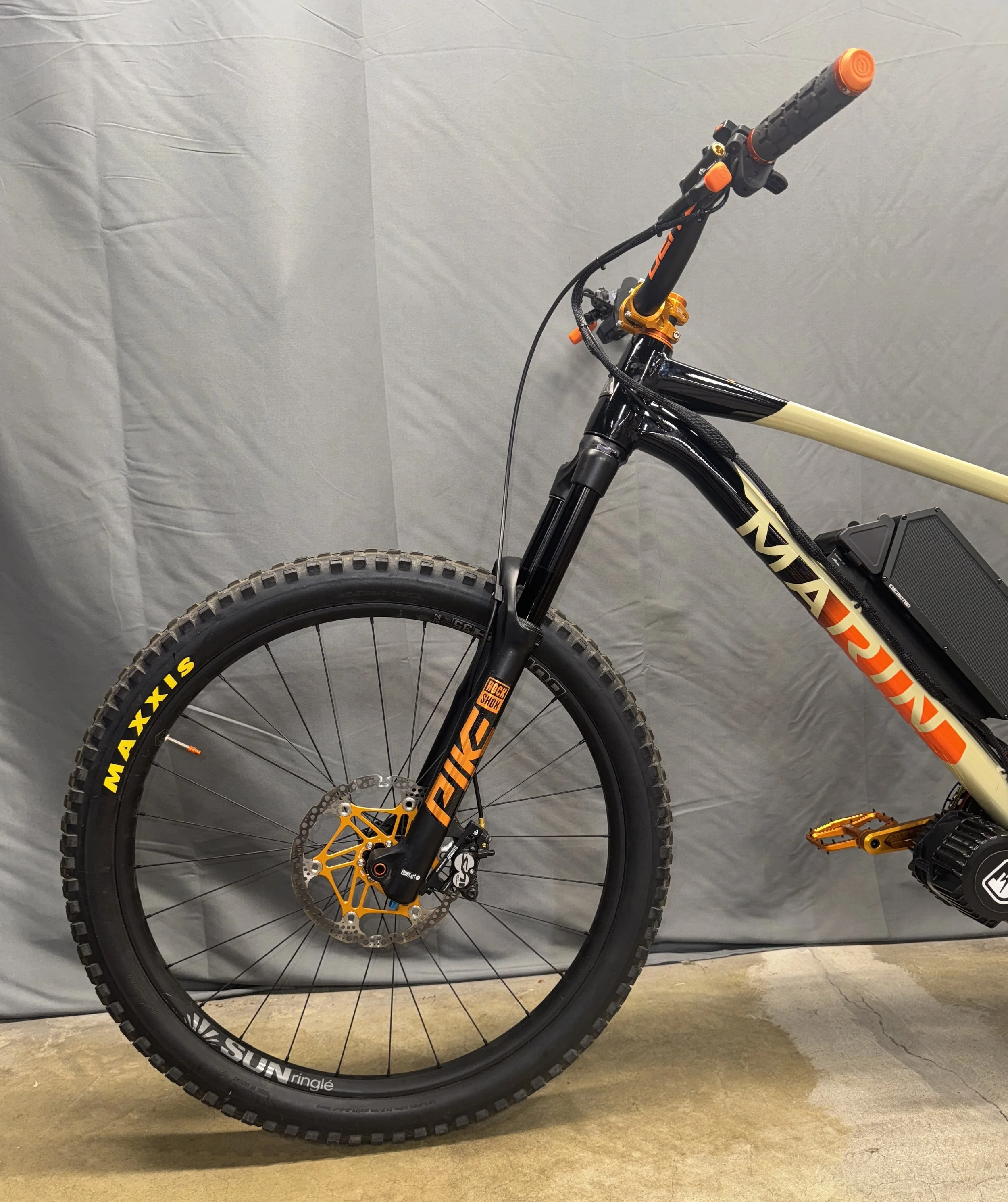

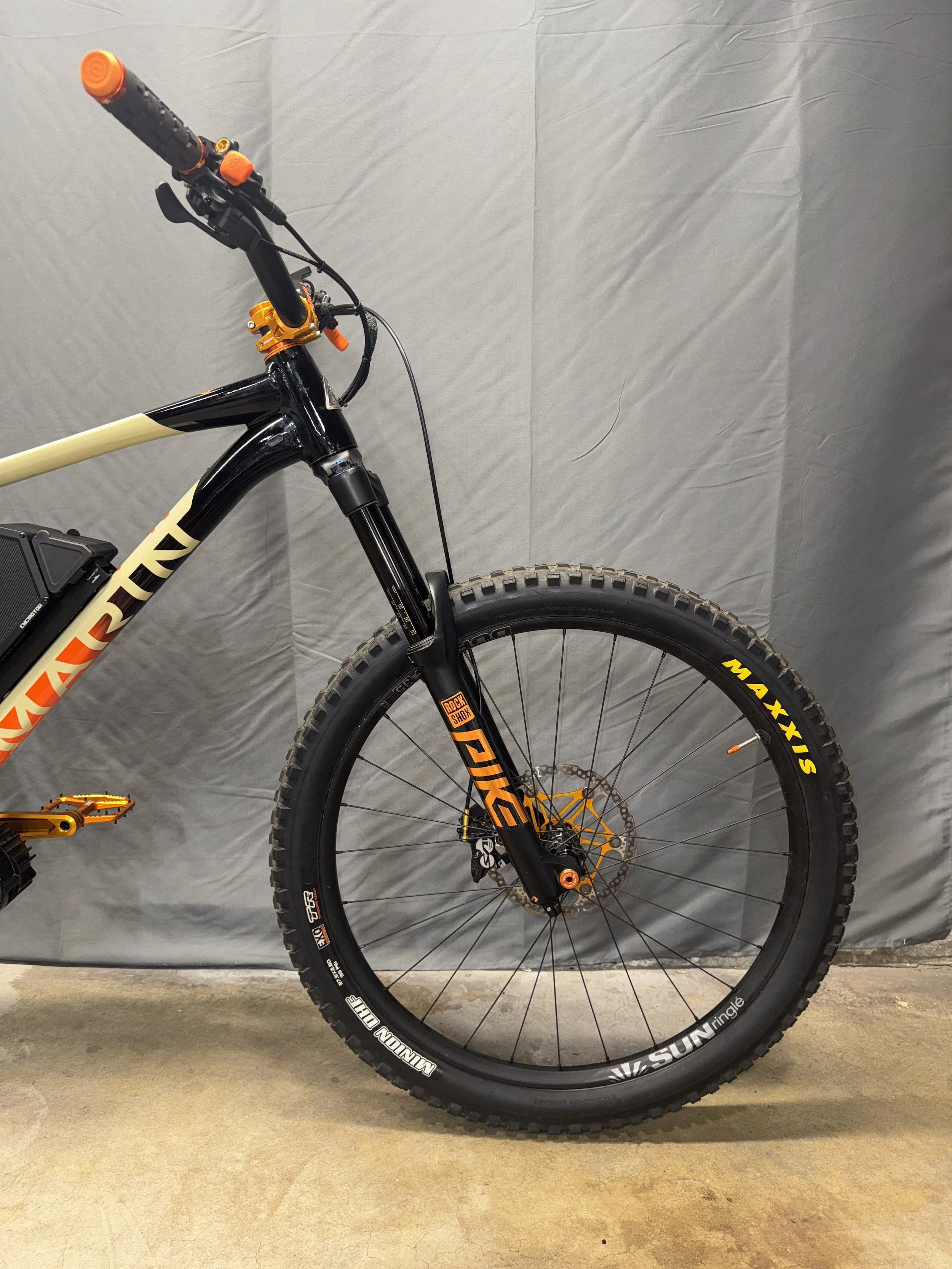

New RockShox Pike model fork with 160mm of travel that has been converted from air to coil using all Push components with new custom Silk graphics in orange to better match the bike.

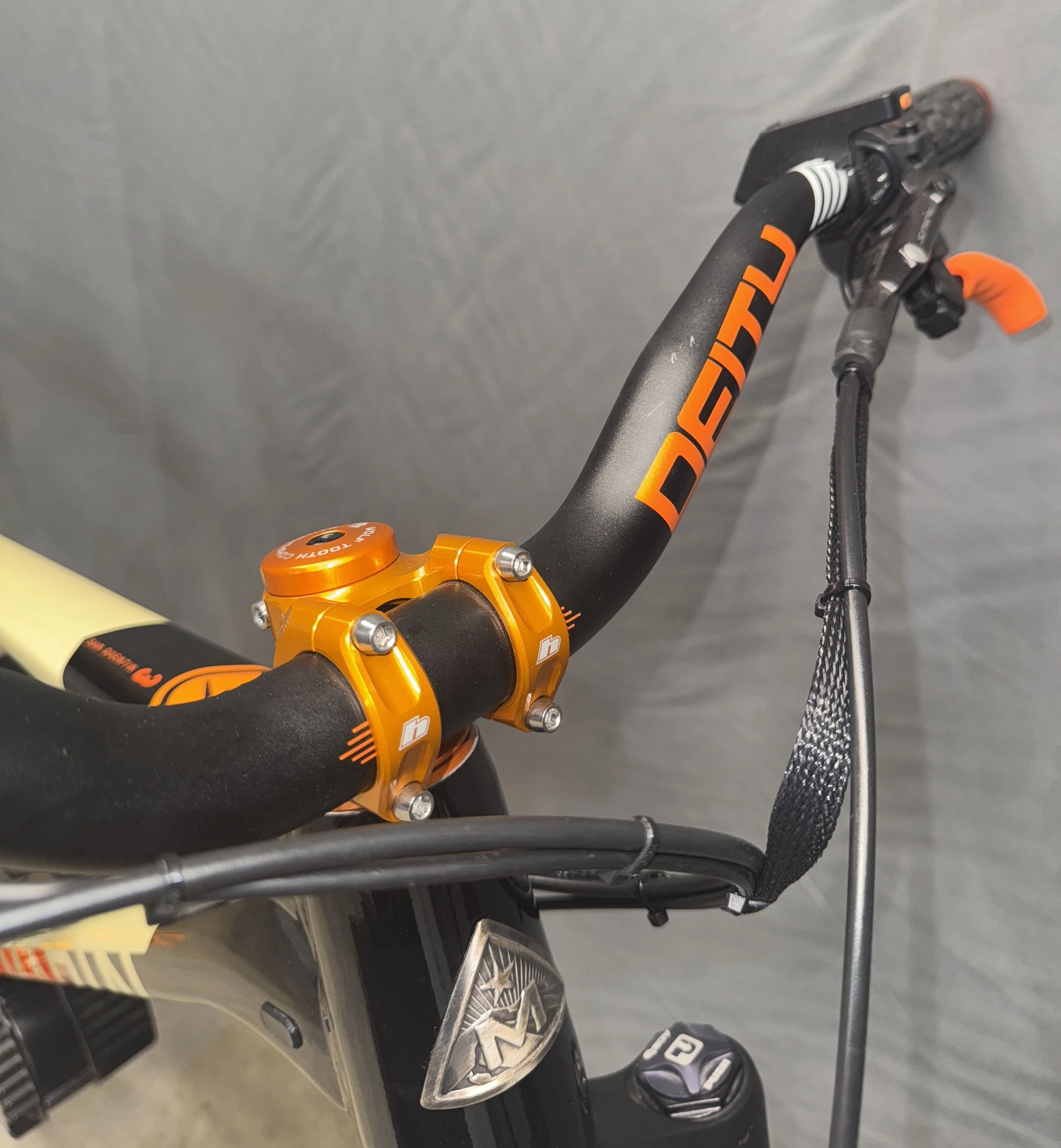

Upgraded Hope stem in orange with 35mm reach.
Upgraded Wolftooth components headset in orange.

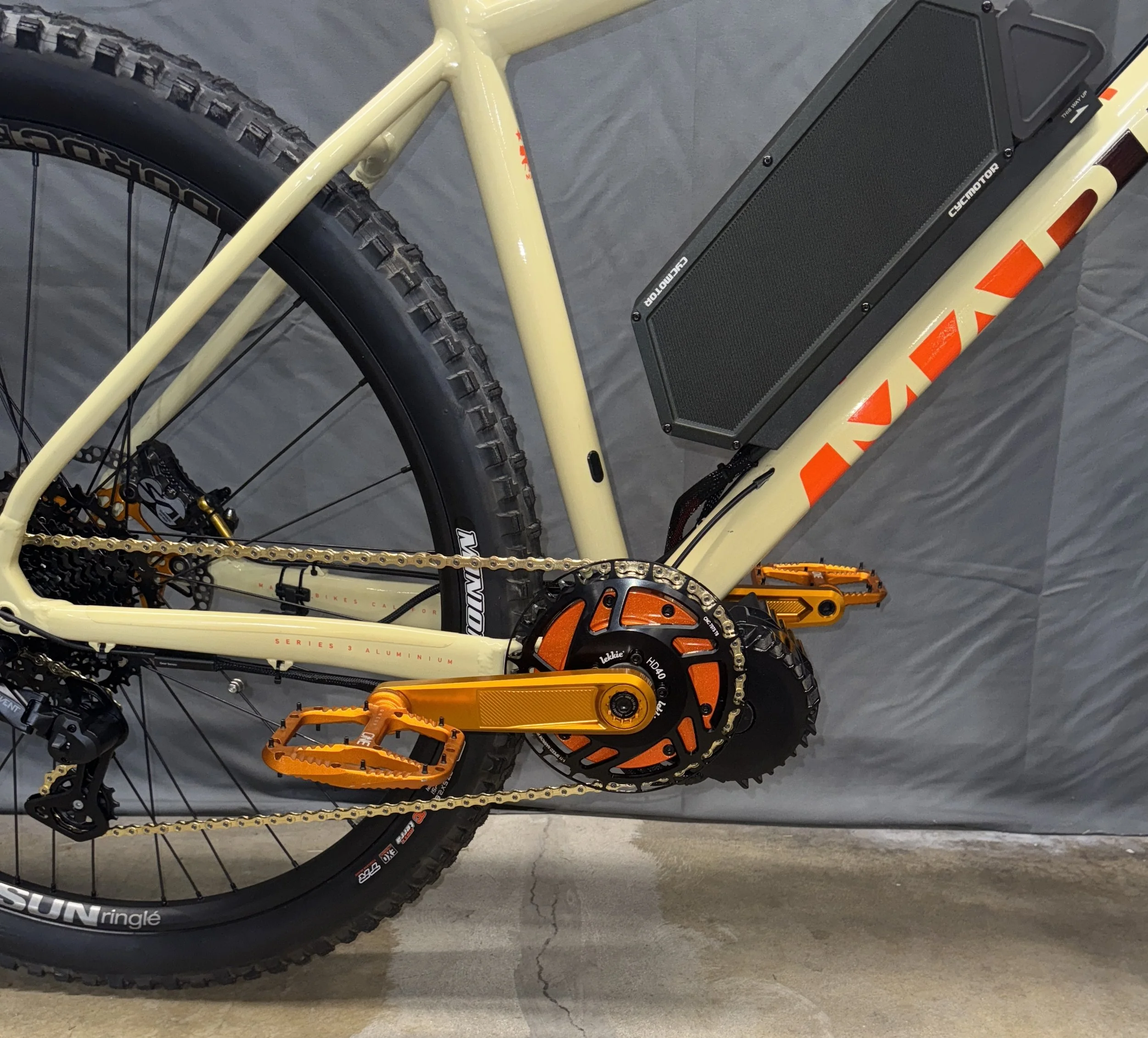

Changed the crank arms to Lekkie 160mm crank arms that were anodized orange to match the build and added a Lekkie 40 tooth bling ring chainring.
Upgraded brake pads to MTX gold label brake pads that are designed for e-bikes on the Shimano Saint brakes.
Added New Hope floating brake rotors in orange with a 203mm rotor in the front and a 180mm rotor in the rear.

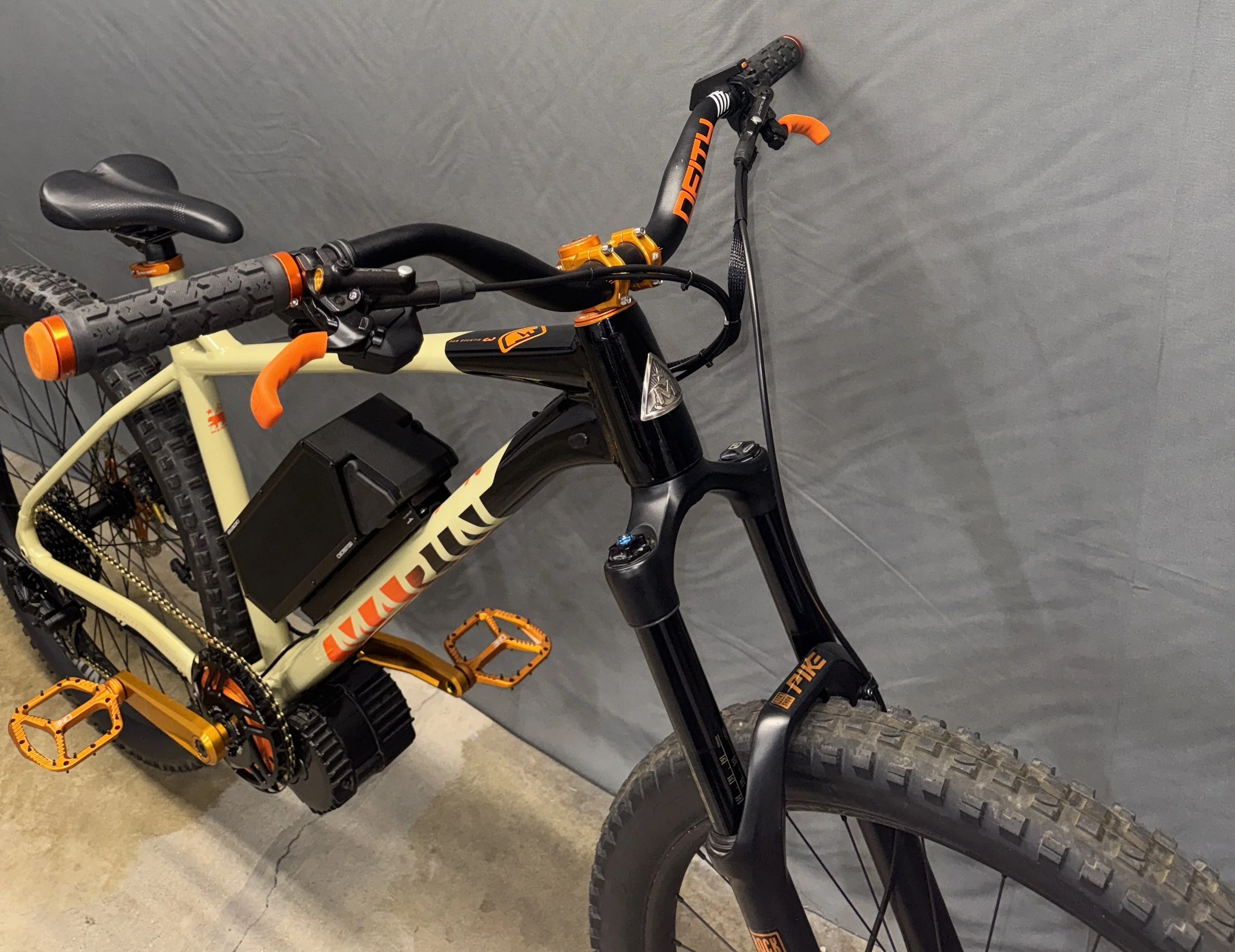

THE FINAL RESULT
